Tetra 2k

CMOS Line Scan Image Sensor

Tetra is a low-cost, high volume CMOS sensor family of 2k, 4k and 8k resolution for multispectral, color and monochrome imaging. This sensor is ideal for pick-and-place sorting and other machine vision applications that require cost-effective imaging.

High Peformance, High Reliability

The sensor has a resolution of 2048 x 4 with a 14µm x 14µm pixel size and runs at a maximum line rate of 100 kHz. The sensor outputs selectable 1, 2, or 4 rows. Based on a synchronized shutter design, the sensor provides low read noise and high dynamic range through the use of true correlated double sampling (CDS). Each channel has its own exposure control, resulting in easy-to-perform white balancing.

Low-Cost but High Performance Solutions

  • Speed – 100kHz aggregate for high speed imaging
  • Multispectral – unique spectrally independent RGB + NIR
  • Detectability – single, dual or quad outputs for improved SNR
  • Resolution – 2k, 4k and 8k for various resolution requirements
  • Color + Mono – output RGB + Mono images
  • Sync shutter – synchronized integration time for each row

Applications

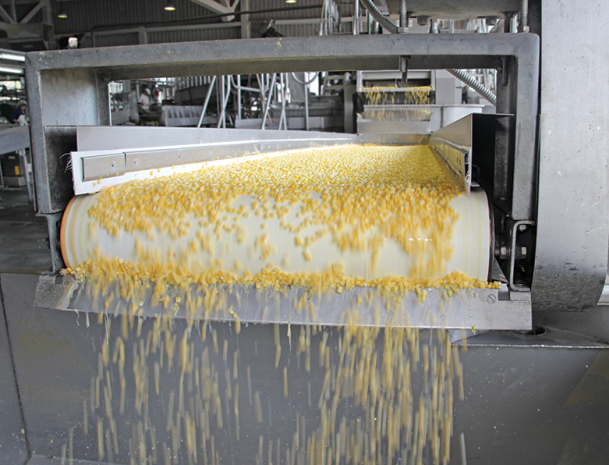

  • Food sorting
  • Logistics
  • Pick-and-place sorting
  • Spectroscopy
Enquire

Specification

Name
Resolution (pixels)
Format (H x V)
Pixel Pitch (µm)
Shutter Type
2k Multispectral
2k
2,048 x 4
14
Synchronized
2k RGB + Mono
2k
2,048 x 4
14
Synchronized
2k Mono
2k
2,048 x 4
14
Synchronized
Name 2k Multispectral
Resolution 2k
Format 2,048 x 4
Pixel Pitch (µm) 14
Shutter Type Synchronized
Name 2k RGB + Mono
Resolution 2k
Format 2,048 x 4
Pixel Pitch (µm) 14
Shutter Type Synchronized
Name 2k Mono
Resolution 2k
Format 2,048 x 4
Pixel Pitch (µm) 14
Shutter Type Synchronized
