Emerald 5M

HOME

>

PRODUCTS

>

Emerald

>

Emerald 5M

Ready for Embedded Vision

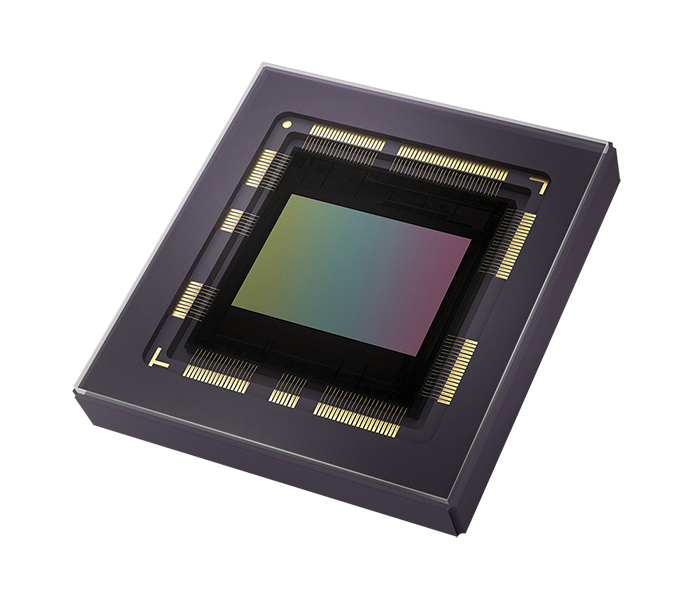

Emerald 5M is compatible with a wide range of state-of-the-art Image Signal Processors (ISP) using the MIPI CSI-2 interface, developed for mobile applications.

Emerald 5M has digital circuits that have been enriched with real time pre-processing algorithms that reduce data storage and processing loads, and maximize the quality of information in each image e.g. the single frame HDR and patented Self Fast Exposure functionalities guarantee an optimized exposure at first frame, even under changing lighting conditions.

Minaturized Size and Reduced Cost

For the first time, a 5M resolution global shutter sensor fits a 1/1.8’ lens, ideal for tiny s-mount cameras.

Machine vision applications often have very diverse environmental conditions and Emerald 5M is available in two different chip packages to either optimize size and cost or prioritize robustness in harsh conditions.

Applications

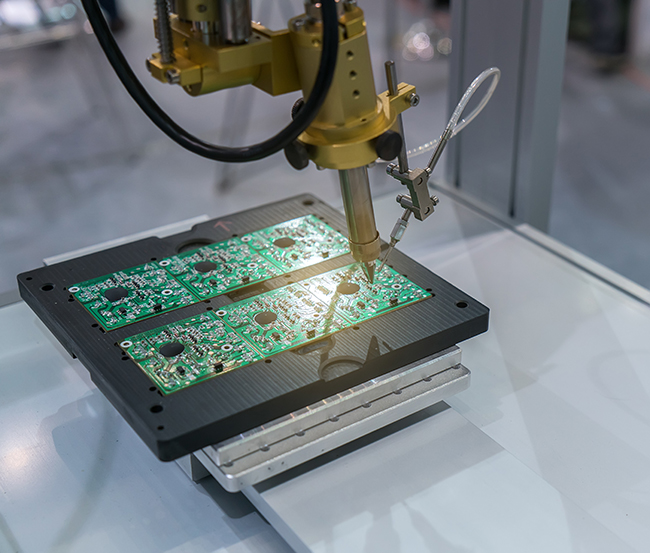

  • Automated Optical Inspection (AOI)
  • Robot guidance
  • Product measuring and grading
  • Label reading and lots tracking
  • Intelligent Transportation System (ITS)
Enquire

Specification

Name
Resolution (pixels)
Format (H x V)
Pixel Pitch (µm)
Shutter Type
Dynamic Range (dB)
Emerald 5M - CLGA
5M
2,560 x 1,936
2.8
Global
67.9
Emerald 5M - fan-out organic
5M
2,560 x 1,936
2.8
Global
67.9
Name Emerald 5M - CLGA
Resolution 5M
Format 2,560 x 1,936
Pixel Pitch (µm) 2.8
Shutter Type Global
Dynamic Range (dB) 67.9
Name Emerald 5M - fan-out organic
Resolution 5M
Format 2,560 x 1,936
Pixel Pitch (µm) 2.8
Shutter Type Global
Dynamic Range (dB) 67.9
Request Datasheet

  • Please note: We will not share your information with any third parties and will only use your details for relevant communications.

Downloads

  • Brochures

Flyer

CMOS Sensor Guide
